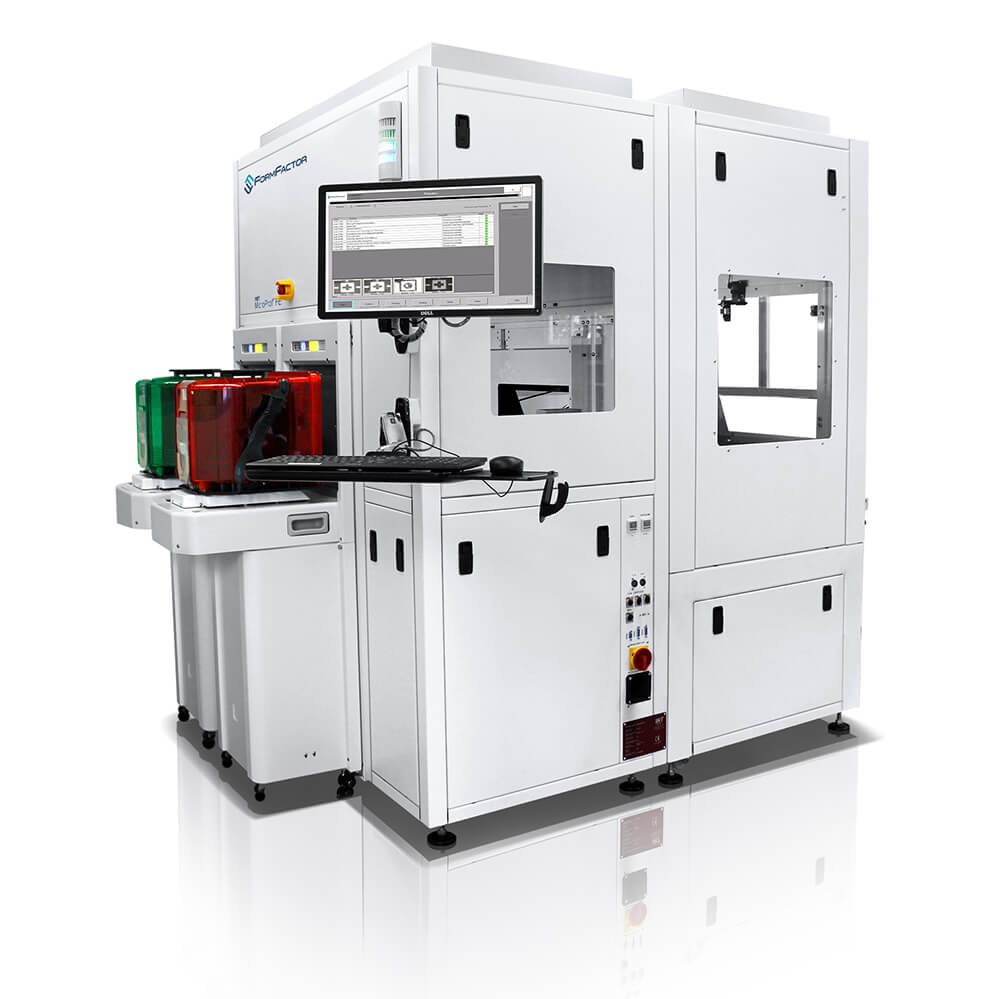

The FRT MicroProf® FE is FormFactor’s standard, fully automated 2D/3D wafer metrology tool. It combines the capabilities of the established MicroProf 300 with a wafer handling system within an Equipment Front End Module (EFEM). With fully SEMI-compliant metrology solutions and almost maintenance-free hardware components, providing high throughput inspection, the MicroProf FE is the metrology solution in any front end HVM fab.

Besides the standard configuration, the FRT MicroProf FE can be equipped with numerous additional features, which can also be retrofit later.

MicroProf FE Metrology System

  • Fully automated 2D and 3D surface metrology for front-end applications

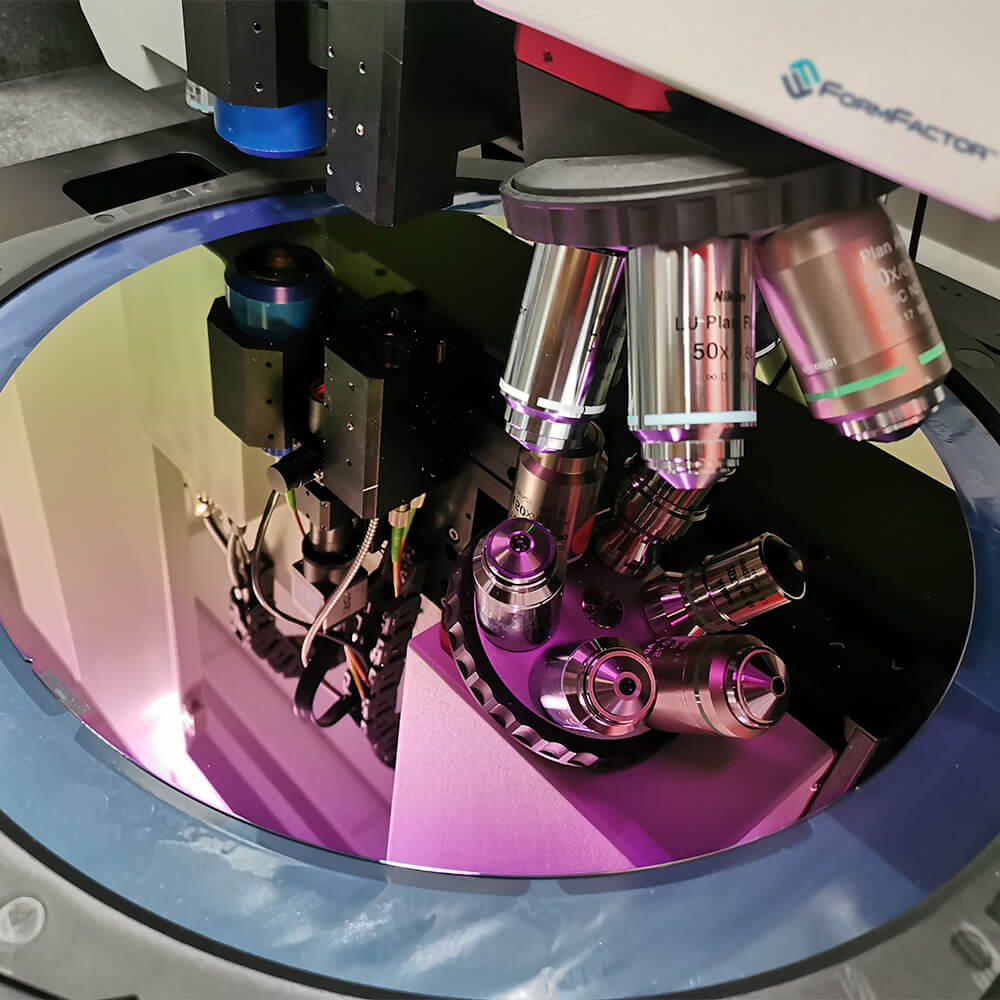

  • Multi-sensor technology for hybrid metrology
  • Specific inline solution for any high-volume manufacturing fab
  • Single-arm robot unit for handling 300 mm (SEMI standard) wafers
  • Vacuum end-effector handling

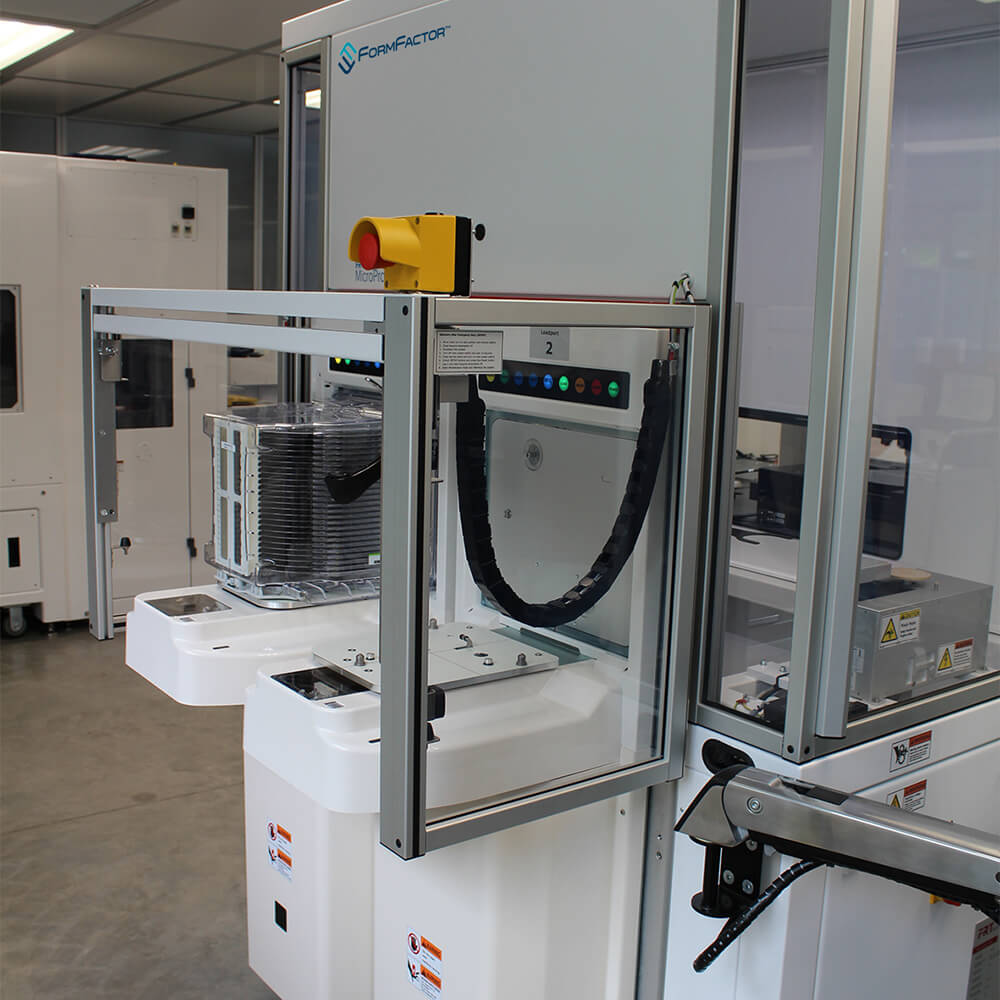

  • 2 load ports for 300 mm FOUPs (SEMI standard)
  • Optional pre-aligner and/or RFID reader

vimeo-video-thumbnail

Fully Automated Wafer Metrology Tools FRT MicroProf with EFEM

The standard fully automated wafer Metrology Tools – MicroProf® FE / FS / AP / DI - combine the capabilities of the worldwide established MicroProf 300, with a wafer handling system within an Equipment Front End Module (EFEM). With fully SEMI-compliant metrology solutions and long-lasting components, the MicroProf with EFEM is configurable for any front end high-volume fab (FE), for a wide range of applications in the silicon wafer foundry (FS), applications at different 3D packaging process steps (AP) or comprehensive defect inspection applications (DI).


vimeo-video-thumbnail

FRT Metrology - TTV Bow Warp Measurement

TTV Bow Warp Measurement means that a top and bottom sensor simultaneously measure topography and thickness of the wafer. In this application video, we show you the typical steps of a TTV Bow Warp recipe: thickness calibration, full wafer mapping, full wafer thickness map in 3D view, fast profile scans and the profile measurement preview, fast point measurement and point measurement preview, as well as the automatic reporting of measurement results and data charts.


vimeo-video-thumbnail

FRT Metrology - Bump Measurements

With bump measurement, the bumps of selected dies can be determined. In this application video, we show you the typical steps of a bump measurement recipe: automatic fine-alignment using high-resolution positioning camera, fast auto approach and measurement at selected die, measurement preview, retract sensor to safe height and move wafer to load position, automatic reporting of measurement results and data charts.


vimeo-video-thumbnail

FRT Metrology - Bonded Wafer Measurement

If you execute the automated measurement of a bonded wafer, the full sample thickness and the thickness of each single layer will be determined. In this application video, we show you the typical steps of a bonded wafer recipe: thickness calibration, full sample thickness, single layer thickness of silicon, glass and glue, automatic reporting of measurement results and data charts.


vimeo-video-thumbnail

FRT Metrology - Thin Film Multi-layer Measurement

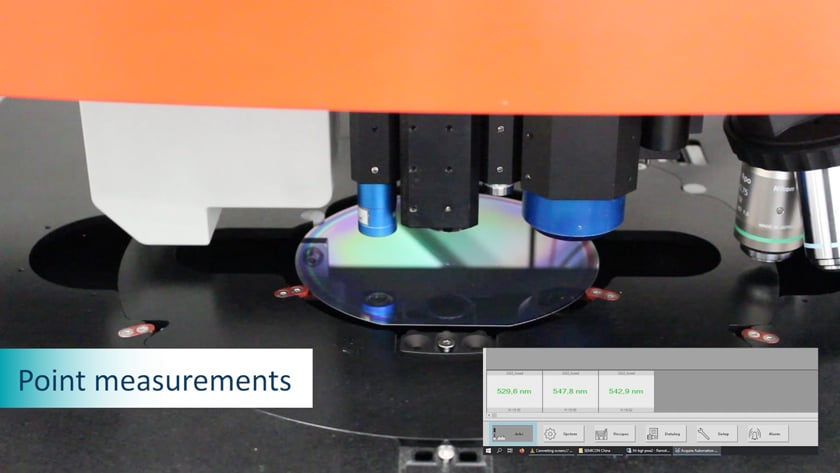

With our metrology tools, we can measure simultaneously thin-film multi-layers. In this application video, we show you the typical steps of a thin-film multi-layer measurement recipe: sensor referencing, simultaneous point measurements of multiple layers, preview of silicon oxide and silicon nitride thickness, automatic reporting of measurement results and data charts.


vimeo-video-thumbnail

FRT Metrology - Wafer Handling with Flip Station

The flip station is a new component in our MicroProf® with EFEM handling equipment and can rotate a wafer by 180 degrees so that the bottom side of the wafer then faces upwards. This allows fully automatic measurement of both the top and bottom of a wafer within one handling process. The rotation of the wafer is relevant for the determination of the wafer bow according to SEMI standard MF 1390. This standard provides for bow measurements both in the original and in the rotated state of the wafer in order to take into account or compensate for the curvature of the wafer (bow) due to its own weight.


vimeo-video-thumbnail

FRT Metrology - Measuring Thin High Bow Wafers

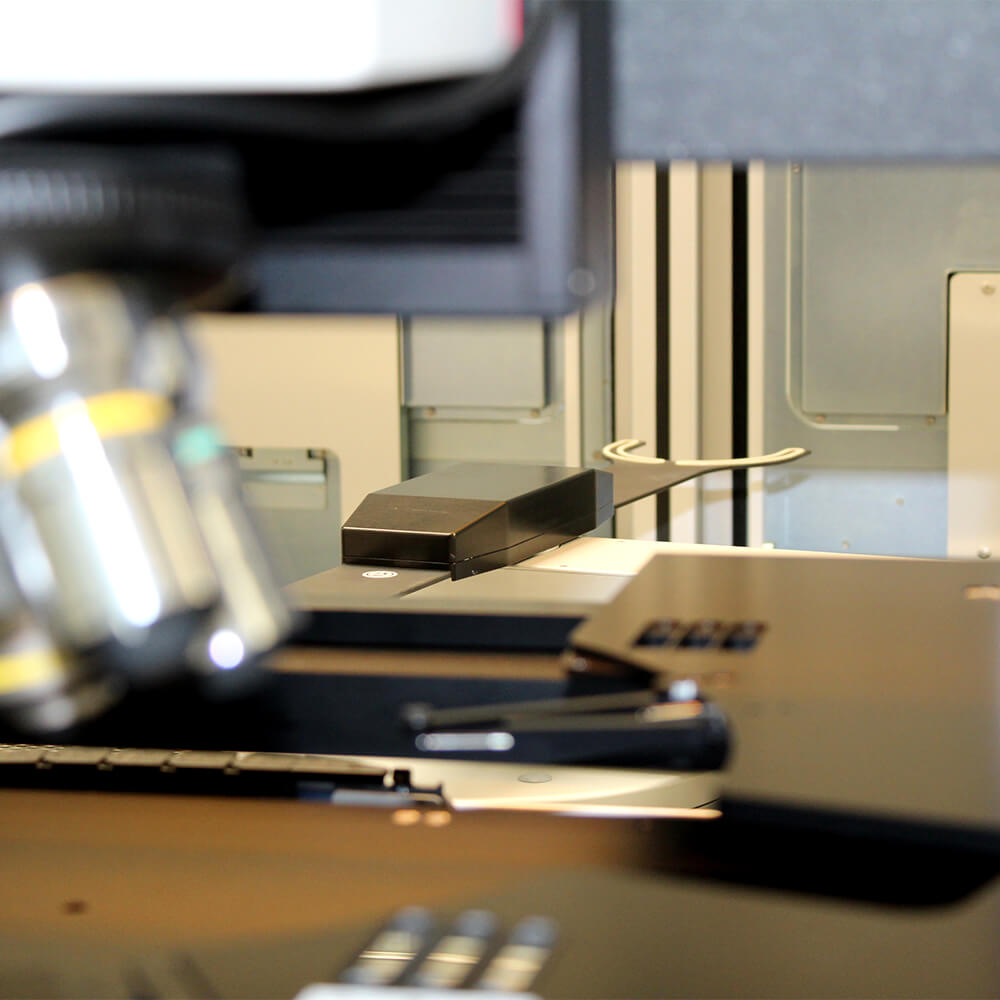

FRT Metrology Tool with integrated Bernoulli and vacuum chuck (developed by FRT) can handle extremely thin high bow wafers for measurement purposes, where the wafer needs to be flattened. To effectively handle different sizes and types of wafers, different kinds of end effectors are required. To facilitate this, a specially designed dual end effector changing station with eight slots is integrated in the tool.
