The Model 106 adiabatic demagnetization refrigerator (ADR) cryostat has been optimized for flexibility and versatility. It aims to support ultra-low temperature research by providing quick and affordable access to mK temperatures. Many customizable options make it easy to reconfigure to fit your needs.

This system uses a two stage ADR to reach temperatures as low as 30 mK. An ADR operates by submitting a salt crystal to strong magnetic fields. In these different states, the salt crystal will either absorb or dump thermal energy. This is used to shuttle heat away from the sample stage achieving mK temperatures. Because of the nature of this process, only a certain amount of heat can be absorbed before the crystal must be warmed up and regenerated.

Designed with customization in mind, the Model 106 is fitted with two large electrical bread boards at both 4 K and 50 K. Additionally, there are multiple customizable feedthroughs in each stage plate. If you are constrained by cooldown times, the Model 106 can support Rapid Cool liquid nitrogen heat exchangers. It is a robust “turn-key” mK alternative to dilution refrigerators.

Applications: Astronomy, Spin QC, Photonic QC, Material Characterization, Condensed Matter Physics

Ultra Low Temperature

  • Pulse tube cryocooler for cryogen free 4K temperatures
  • Two stage ADR provides solid state cooling down to 30mK
  • Sample stage mounting at both 1K and 50mK

Configurability

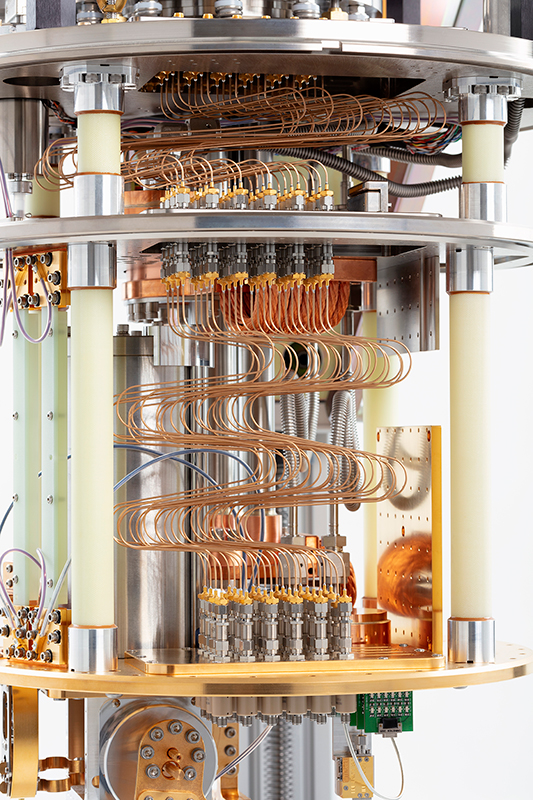

  • Multiple stage feedthroughs for thermally intercepting the signals
  • Two large electrical bread boards for more configurable space
  • Rapid cool options for faster cooldowns
