  • HPD JDry-500 Insert

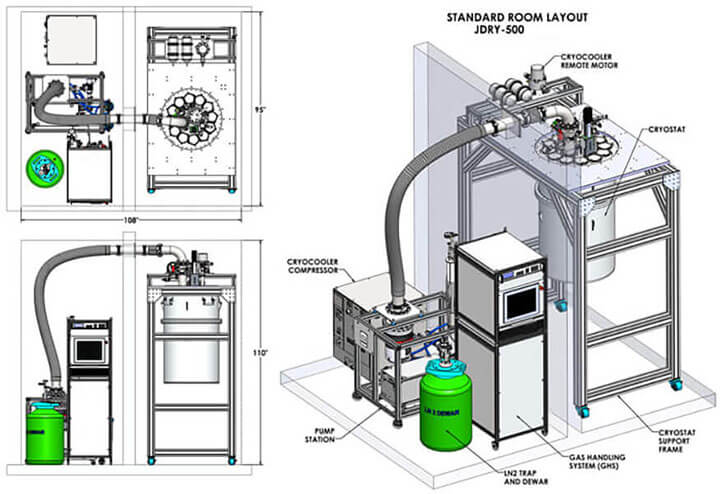

  • HPD Jdry-500 Room Layout
  • HPD JDry-500 GHS Pump

FormFactor’s JDry cryogen-free dilution refrigerators enable easy and cost-effective cooling to temperatures below 10 mK. The JDry models have been optimized for quantum computing applications and can accommodate up to 270 semirigid cables. General-purpose configurations and astronomy/detector cooling are also provided.

The JDry cryogen-free dilution refrigerator series includes multiple standard models. All are available with easy push-button cooling using the robust and fully-automated NI LabVIEW™-based “JACoB” gas-handling system (GHS).

The JDry-500 model is fitted with a cold-plate of 508 mm (20″) diameter, and provides a cooling power of more than 450 µW at 100 mK.

  • Low running costs, less vibration, less noise, reduced maintenance
  • Large convenient experimental access: Up to 12 line-of-sight ISO100 ports located on perimeter of plates
  • CMN calibrated thermometry on MC plate
  • Operation via touch panel controller: Remote operation via ethernet interface
