TESLA300
300 mm semi-/ fully-automated on-wafer power device characterization system
Looking for customer support? Ready to learn more about our products and services?
Contact Sales TodaySubscribe to Our Newsletter
The TESLA300 Advanced On-Wafer Power Semiconductor Probe System is an integrated high-power test solution that enables collection of accurate high-voltage and high-current measurement data up to 3 kV (triaxial) / 10 kV (coaxial) and 200 A (standard) / 600 A (high current), with complete operator safety.
The TESLA300 provides lab automation capabilities and enables high-power electrical measurements for device characterization, high-volume engineering and extremely challenging applications. It is also ideally suited in customized solutions, niche production applications, and emerging markets.
Patented AttoGuard technology built in TESLA300 significantly improves low-leakage and low-capacitance measurements. In combination with FormFactor’s patented TESLA FemtoGuard™ thermal chuck technology, the TESLA300 provides a fully guarded and shielded test environment. The high-power TESLA FemtoGuard chuck also incorporates MicroVac™ technology enabling low-contact resistance, thin wafer handling and maximum power dissipation.
Gold-plated TESLA High-power MicroVac™ Chucks
- Prevent thin wafers from curling and breaking
- Advanced MicroVac chuck surface for minimum contact resistance between wafer and chuck
- Accurate Rds(on) measurement at high current
- Accurate UIS measurements at high temperature

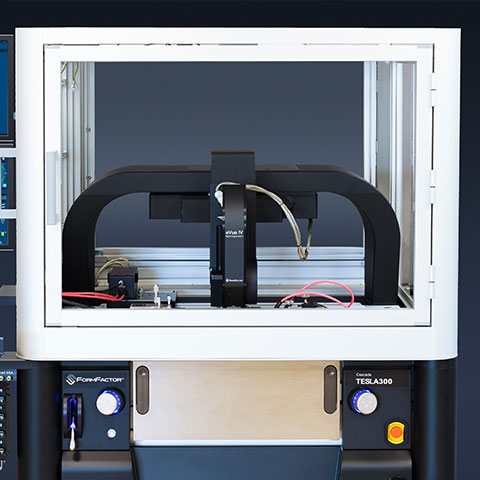

TUV-certified probing environment
- Safety-rated interlock system for high-power testing (meets EN 60947-5-1, EN 60204-1)
- Front, side and rear opening doors for ergonomic test setup and operation
- Side panel with cable pass-through for easy equipment configuration
- Full enclosure design (no light curtain) prevents accidentally tripping the safety interlock and stopping test
Top-lift wafer loading
- Eliminates lift-pins from chuck for best-in-class power device measurements
- Provides lowest contact resistance from wafer to chuck
- Supports fully automated testing up to 10kV by eliminating arcing point
- Superior performance for vertical device measurements (no lift pin holes under device)
Rollout stage with quick access to auxiliary sites
- Full wafer access via locking roll-out stage
- Two patented auxiliary chucks
- Auxiliary chucks: High voltage 10 kV compatible multi-purpose mounts for substrates (cleaning, contact)
- Automated probe cleaning capabilities
High-voltage/current Probes
- On-wafer power device characterization up to 10,000 V DC / 600 A
- Reduced probe and device destruction at high currents up to 20 A DC and 300 A pulse
- Increased isolation resistance and dielectric strength to provide full triaxial capability at high voltage (3,000 V) for low-leakage measurement
Connection panels
- Coaxial, triaxial, and pin jack feed-troughs available
- Limit cable strain and motion for measurement stability
- Instrument stays connected to back of panel
- Probe connection made at front of panel
- Simple to re-arrange cabling when needed
Seamless Integration
- Convenient instrument connection kits
- Seamless integration between Velox and analyzers/measurement software
- Easy and safe system integration with Keysight and Keithley power device analyzers
3D Manual Controls
- Virtual Platen Lift and XY knobs at front
- Intuitive, and precise movement of chuck in X, Y, and Z-direction
- Platen Lift enables extremely rapid and intuitive way in performing many alignment tasks like setting up the contact height
Material Handling Unit (MHU301)
- For fast handling of 200/300 mm wafers
- Load/unload wafer to hot/cold chuck (-60° C to +300° C)
- Integrated pre-aligner for flat/notch detection
- Barcode/2D Matrix code/OCR wafer code recognition from both sides (option)
- Quick Access Port option for higher throughput and additional wafer storage
- SEMI-compliant load port for up to 25 wafers
- For FOUP and FOSB 300 mm wafer cassettes
Thermal Measurements
- Wide range of extremly performant, reliable thermal chuck systems from ATT
- Flexibility from hot only to full thermal range of -60°C to +300°C
- Up to 25% lower air consumption (CDA) than other systems in the market (300l/min) with no compromise in transition times
- Up to 15% faster transition times than other systems in the market
- Patented MicroVac™ and FemtoGuard™ Technologies, providing ultra-low noise measurements and controlled leakage, low residual capacitance for repeatability and advanced measurement accuracy and speed
- Field-upgradeable: grows with your needs
Remote operation from home or anywhere in the world
- Safely and easily place probes down in contact with the test pads (full capability with motorized positioners)
- Safely move the wafer to different test sites
- View and manage live microscope viewing of the probes and the wafer
- View Wafer Map test plans
- Initiate remote test programs to gather and analyze test data
Velox Probe Station Control Software
- User-centered design minimizes training costs and enhances efficiency
- Windows 10 compatibility enables highest performance and safe operation with state-of-the-art hardware
- Comprehensive alignment functions – from simple wafer alignment and mapping to advanced probe-to-pad alignment over multiple temperatures for autonomous semiconductor test
- Simplified operation for inexperienced users: Reduced training costs with Workflow Guide and condensed graphical user interface
- VeloxPro option: SEMI E95-compliant test executive software that enables simplified and safe automation of the entire wafer test cycle
- High Power
