Board test system for signal integrity probing
Board Test System Overview
The BTS1000 and BTS2000 are complete Board Test Solutions for signal integrity probing on IC packages and circuit boards. Depending on the application the system will be fully customized. As result the dedicated system perfectly matches with the needed measurement requirements.
Applications: IV/CV, RF/mmWBoard Test System Key Features
Flexibility
- Multiple options available for easy reconfiguration and upgrades for a wide range of applications
- Ideal for a wide range of applications such as RF and antenna characterization
- Re-configurable and upgradable as requirements grow
- Minimizes setup times with no loss in performance or accuracy
Stability
- Solid station frame
- Rigid microscope bridge
- Rigid positioner bridge
- Compact and rigid mechanical design
- Highly accurate measurement results

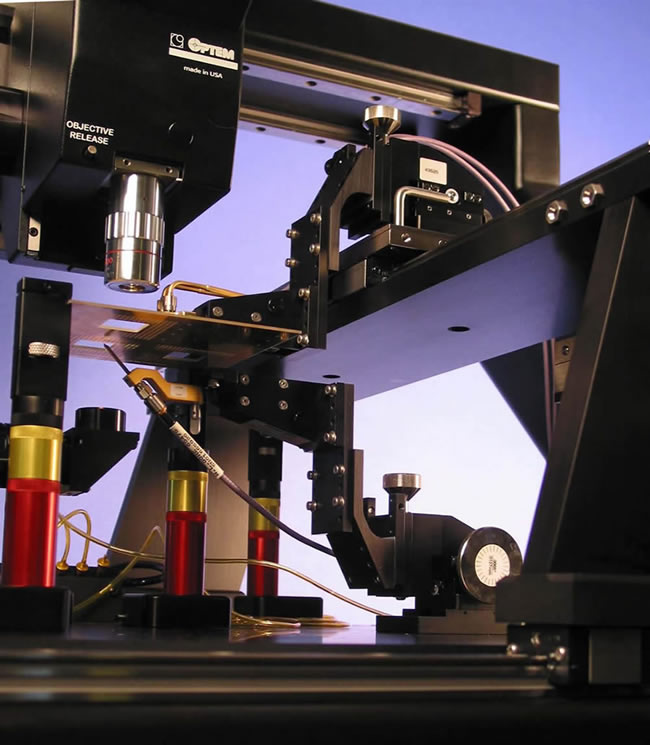

Ease of Use
- Economic and straightforward design
- Horizontal or vertical aces to DUT
- Minimize training efforts
- Fast time to data
- Convenient operation
